What is an HTTP request?
An HTTP request is simply the message that a web browser or any other HTTP client sends to a server to ask for something, such as requesting data from the server, sending data to the server, and more depending on the HTTP method used. The HTTP client forms this HTTP request and sends it to the server through a network connection, usually after completing the DNS, TCP, and TLS processes.

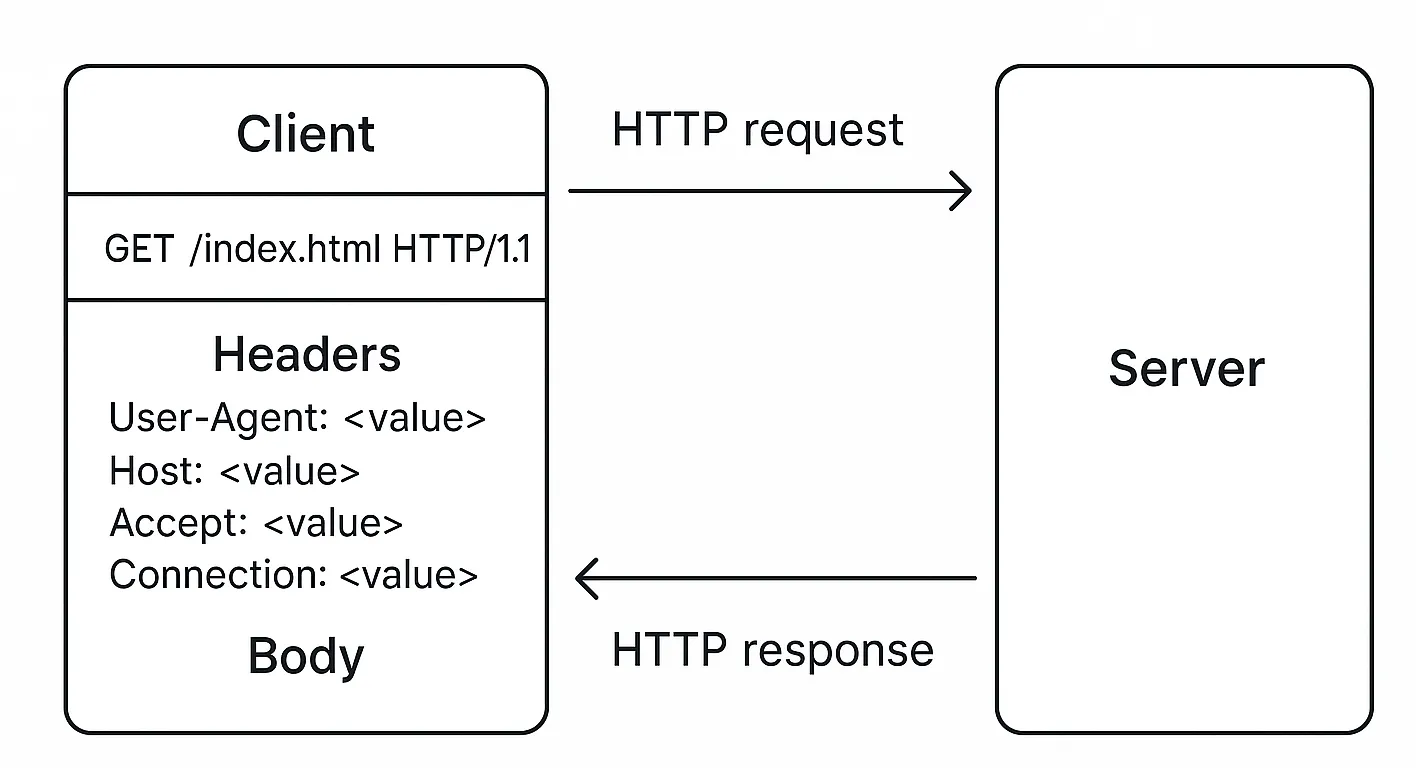

HTTP Request Structure
HTTP
request structure
An HTTP request has several parts. It starts with a request line like GET /index.html HTTP/1.1,
which includes the method (like GET or POST), the path, and the HTTP version. After that, there are
headers – key-value pairs like User-Agent, Host, Accept, Connection, and many more. These
headers give more context to the server about what the client wants or can handle. Depending on the
method used, the request may also contain a body, which is often seen in POST or PUT requests, where
data is being sent to the server (like a form submission).
The server receives this request, reads it, and sends back an HTTP response. That’s the basic request-response cycle that drives the entire web.

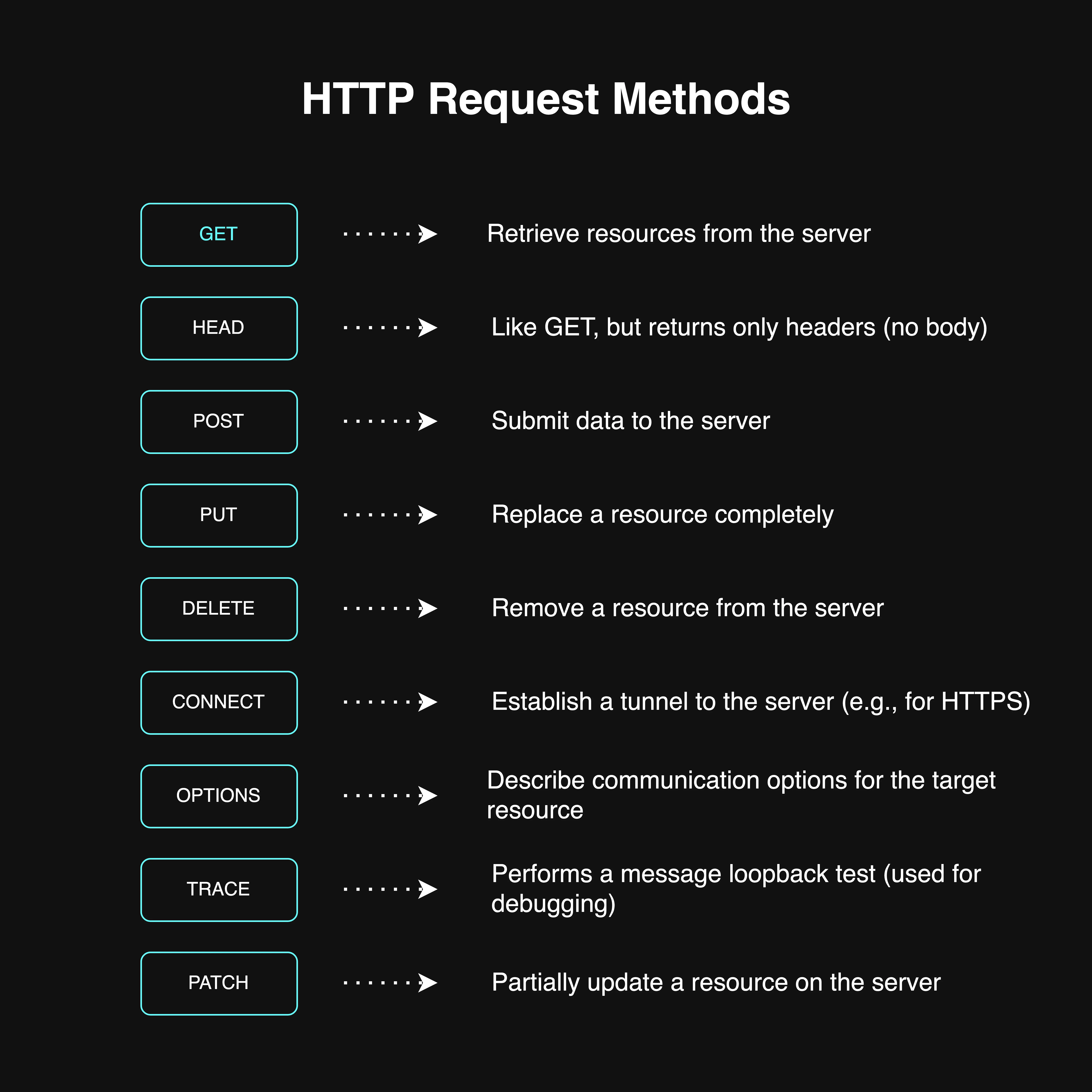

HTTP Request Methods
HTTP
request methods
For a more information, refer to the documentation1.
Evolution of HTTP - Quick Glance
HTTP didn’t appear overnight in the form we use today. It evolved through versions – starting from HTTP/0.9, then 1.0, 1.1, 2, and now HTTP/3.
- HTTP/0.9: Very basic, only allowed GET method, and didn’t even have headers.
- HTTP/1.0: Introduced headers and better structure, but lacked persistent connections.
- HTTP/1.1: Brought persistent connections and a lot of improvements.
- HTTP/2: Introduced multiplexing and better performance.
- HTTP/3: Built on QUIC protocol using UDP, still in adoption.
In this writing, I’m going to focus only on HTTP/1.1 and HTTP/2, because they are the most commonly used versions on the web today. Most modern websites either run on HTTP/1.1 or HTTP/2. HTTP/3 adoption is growing but still not as dominant.
HTTP/1.1 (Old reliable version)
So with HTTP/1.1, there’s one key thing to remember, it doesn’t support multiplexing. That means a single TCP connection can handle only one HTTP request at a time. Let’s say the browser establishes a TCP connection with the server. It sends one request and waits for the response. Only after getting the response, it can send the next request through that same connection.
Now websites aren’t just a single file anymore. A single HTML file usually references dozens of other resources like CSS files, JS files, images, fonts, etc. So browsers can’t wait for one-by-one serial requests. To improve the speed, browsers try to open multiple TCP connections in parallel to the same domain. But there’s a limit, the browser allows only up to 6 concurrent TCP connections per domain.
What if a webpage needs to load 13 resources from the same domain? Well, the browser opens 6 TCP connections and starts fetching the first 6 resources in parallel. The remaining 7 are just queued up. As soon as one of those 6 connections finishes and becomes free, the browser uses it to fetch the next resource. This waiting mechanism slows down the page load. It’s like having 6 delivery bikes for 13 packages. Until one comes back, the rest have to wait.
This also leads to more usage of system resources. More sockets opened, more TLS handshakes needed for each new connection, and more ALPN negotiations every time a secure connection is established. All of that is not efficient.
Back in the days before HTTP/2 became popular, developers used some tricks to bypass this 6 connection limitation. One way was subdomain sharding. Loading some resources from img.example.com, some from cdn.example.com, and some from the main domain. That way the browser could open more connections across different subdomains. Another method was using CDNs that serve static content from other domains. You could also change browser settings to increase the limit (but not recommended). And of course, the most effective solution is to upgrade to HTTP/2 or 3.
Do I think it’s worth mentioning these tricks? Honestly yes, but only to show how devs had to fight against HTTP/1.1’s limitations before better protocols came along. Most modern websites and browsers use HTTP/2, so these tricks are less useful now. But they do tell the story of how things evolved.
HTTP/2 (upgraded version)
Now HTTP/2 came to fix most of HTTP/1.1’s limitations. The biggest win is multiplexing. It allows multiple HTTP requests and responses to be sent at the same time over a single TCP connection. That means no more need to open extra TCP connections to the same domain. No more queuing like in HTTP/1.1.
So in our earlier example, even if there are 13 resources to load, all of them can be sent together in a single connection. Parallelized and efficient. No blocking, no delays. This improves performance massively, especially for complex websites.
HTTP/2 also brings in binary framing, header compression (HPACK), and even server push (where server sends files before client asks: though this isn’t heavily used nowadays). But the main star here is multiplexing. It changes everything.
Under the hood, HTTP/2 still uses TCP. And if it’s running over TLS, then ALPN is used during the TLS handshake to decide whether the connection should use HTTP/1.1 or HTTP/2.
Keep-Alive Header: HTTP/1.1 vs HTTP/2
With HTTP/1.1, the Connection: keep-alive header is necessary if you want to reuse a TCP connection for multiple requests. If you don’t use it, the connection closes after each request. But even with keep-alive, HTTP/1.1 still only allows one active request per connection. So it avoids re-handshakes, but it still can’t handle true parallelism.
In HTTP/2, this concept is built-in. There’s no need for keep-alive headers. The connection stays alive by default and multiplexing takes care of everything. It’s smarter and doesn’t rely on manual headers to stay efficient.
Client and server must agree on HTTP version
Other Domains = New TCP Connections
Whether you use HTTP/1.1 or HTTP/2, if your main HTML file includes resources from other domains: let’s say fonts from Google Fonts or scripts from a CDN, the browser has to create new TCP connections to those domains. Each domain means a fresh TCP connection, a separate TLS handshake, and a new ALPN negotiation.
So even if HTTP/2 saves you from multiple connections to the same domain, it can’t help with third-party resources. That’s why reducing third-party dependencies also helps improve load times.
Inspecting HTTP version
You can check the HTTP version used by a site using terminal commands or browser DevTools.
From the terminal:
curl -I https://kavindujayarathne.comIf you want verbose output:
curl -vI https://kavindujayarathne.com
Using curl you can force the http version also:
curl -I --http1.1 https://kavindujayarathne.com → forces HTTP/1.1
curl -I --http2 https://kavindujayarathne.com → forces HTTP/2
From the browser:
Open DevTools → Network tab → Reload the page → Look under the ‘Protocol’ column to see which HTTP version is used for each resource.
